Chapter 7
AC Analysis

m7.3 Phase-Shift Circuits

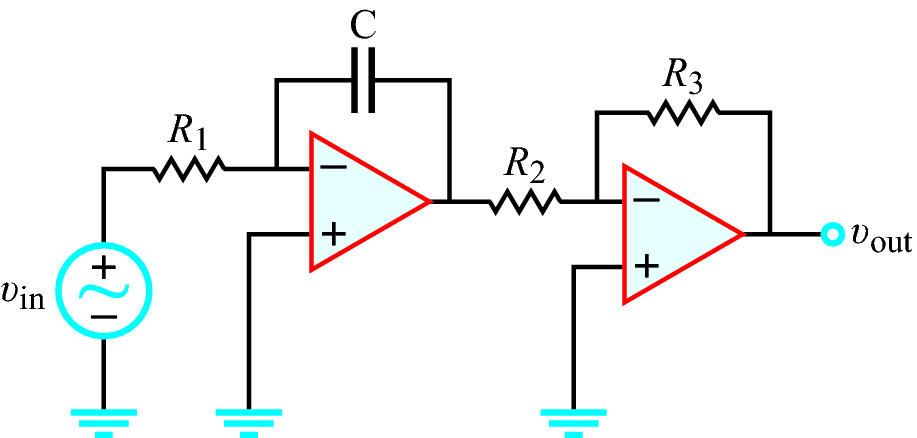

Figure m7.3 shows a phase-shift circuit based on op amps.

  1. Write the general expression for the magnitude of Vout with frequency taken as a variable. Hint: View the circuit as the cascade of two standard op-amp circuits.
  2. Write the general expression for the phase of Vout with frequency taken as a variable.
  3. Set C = 0.1 μF and set all resistors to 1.0 kΩ. Determine the frequency in Hz at which Vout and Vin share the same magnitude. What is the phase shift at this frequency?

PIC


Figure m7.3: Circuit for Problem m7.3

NI Multisim Measurements

Enter the circuit of Figure m7.3 with the component values listed in Part 3 of the problem statement. Use the AC voltage source for Vin with unit amplitude and frequency set to the value you calculated in Part 3. Use interactive analysis and the oscilloscope to measure the the magnitude and phase of Vout.

Additional helpful tips:

NI Multisim video tutorials:

NI myDAQ Measurements

Construct the circuit of Figure m7.3 with the component values listed in Part 3 of the problem statement. Use the NI ELVISmx Function Generator to create the sinusoidal voltage source on AO0; set its frequency to the value you calculated in Part 3. Use the NI ELVISmx Oscilloscope to measure the node voltages Vin and Vout.

Additional helpful tips:

NI myDAQ video tutorials:
