Chapter 5
RC and RL First-Order Circuits
m5.4 Response of the RL Circuit

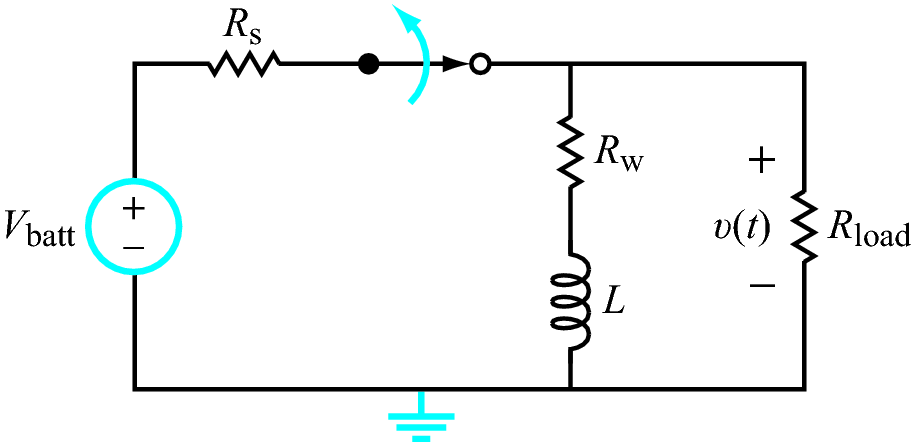

The circuit of Figure m5.4 demonstrates how an inductor can produce a
high-voltage pulse across a load resistance Rload that is considerably higher than
the circuit’s power supply V batt, a 1.5-V “AA” battery. High-voltage
pulses drive photo flash bulbs, strobe lights, and cardiac defibrillators, as
examples.
Resistor Rs models the finite resistance of an electronic analog switch and
Rw models the finite winding resistance of the inductor. Component
values are: Rs = 16 Ω, Rw = 90 Ω, Rload = 680 Ω, L = 33 mH, and
V batt = 1.5 V.
- Determine the load voltage v after the switch had been closed for a
long time.
- Determine the equation that describes v(t) after the switch opens at
time t = 0.
- Determine the magnitude of the peak value of v(t). How many times
larger is this value compared to the battery voltage V batt?
- State the value of the circuit time constant τ with the switch open.
Plot v(t) over the time range -τ ≤ t ≤ 5τ.
NI Multisim Measurements
- Enter the circuit of Figure m5.4. Use the interactive switch SPST
(single pole, single throw) and a measurement probe to determine v
with the switch closed for a long time.
- Connect the oscilloscope to monitor the voltage v(t). Run interactive
simulation, adjusting the oscilloscope settings to make the waveform
fill a reasonable amount of the available display in both the vertical
and horizontal directions. Use edge triggering and the “Normal”
triggering mode to capture the transient when the switch opens. You
may wish to decrease the time step size of interactive simulation to
achieve higher resolution; see the tutorial video linked at the end of
this section.
- Use the oscilloscope cursor to measure the magnitude of the peak
value of v(t).
- Measure the time constant using the half-life technique described in
Figure E.1 in Appendix E.
NI Multisim video tutorials:
NI myDAQ Measurements
- Construct the circuit of Figure m5.4 using the normally-closed
Switch 2 contained in the Intersil DG413 quad analog switch
described in Appendix D.
Refer to the pinout diagram of Figure D.1
and connect power according to the photograph of
Figure D.2. Do
not place actual resistors for Rs and Rw because these simply model
the finite resistance of the analog switch and inductor winding
resistance. Create the 1.5 volt source with the LM317 variable voltage
circuit of Figure B.2 in Appendix
B and connect it to the DG413 “Source (Input)”
terminal; connect the “Drain (Output)” terminal to the inductor.
Establish the following myDAQ signal connections to the DG413:
- DIO0 (Digital Input/Output 0) to the “Logic Control” (switch
control) input for Switch 2,
- AI0 (Analog Input 0) to display the switch control voltage;
connect AI0+ to the switch control input and connect AI0- to
ground,
- AI1 (Analog Input 1) to display the voltage v(t); connect AI1- to
ground.
Use the NI ELVISmx Digital Writer (“DigOut” on the NI ELVISmx
Instrument Launcher) to operate DIO0 as an output. Toggle the button for
Line 0 to operate the analog switch. Use the NI ELVISmx DMM voltmeter
to measure v when the switch is closed.
- Change the switch control voltage to AO0, Analog Output 0. Create the
switch control voltage with the NI ELVISmx Function Generator. Choose
the squarewave shape and adjust the amplitude and offset to make the
squarewave swing between 0 and 5 volts. Observe this waveform on the
oscilloscope to confirm your correct setup before you connect it to the
analog switch.
Adjust the NI ELVISmx Oscilloscope settings to display the voltage v(t) so
that the waveform fills a reasonable amount of the available display. Use a
combination of edge triggering and the “Horizontal Position” control. You
may find it helpful to set the “Acquisition Mode” to “Run Once” and then
click the “Run” button repeatedly until you capture a good trace.
Alternatively, try increasing the squarewave frequency to keep the
oscilloscope from timing out; a squarewave frequency of about (5τ)-1 Hz
allows the voltage transient to reach its final value before the switch closes
again.
- Use the oscilloscope display cursors to measure the magnitude of the peak
value of v(t).
- Measure the time constant using the half-life technique described in
Figure E.1
in Appendix E.
NI myDAQ video tutorials:
Further Exploration with NI myDAQ
The switch model resistance Rs and the inductor winding resistance Rw values
used in the circuit of Figure m5.4 were based on measurements taken with
actual equipment, but may not necessarily match the values for your
devices.
Measure the on-resistance of your analog switch and also measure the
resistance of your inductor. Recalculate your theoretical time constant value
using your measurements. Report the degree to which you see closer agreement
between your theoretical and measured values for the time constant
τ.
