Chapter 3
Analysis Techniques
m3.3 Superposition

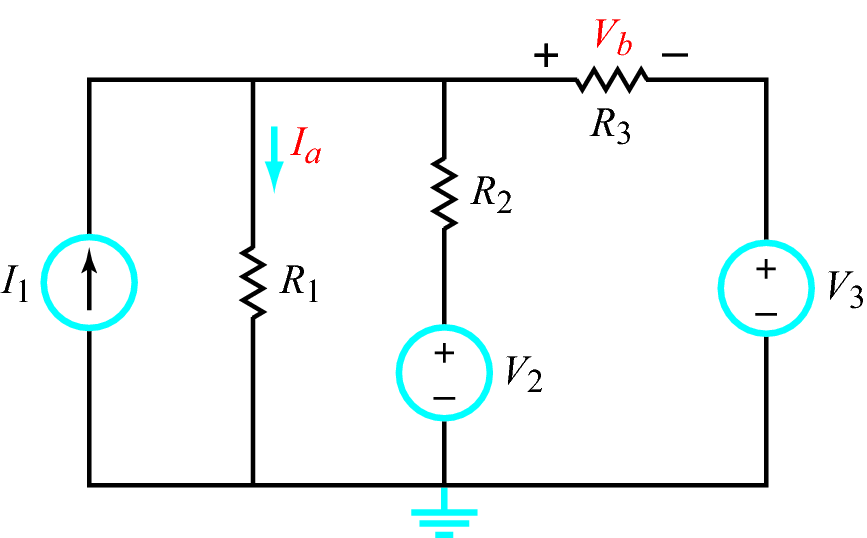

In the circuit of Fig. m3.3:
- Apply the superposition method to determine the current Ia and the
voltage V b, i.e., find the current Ia1 due to the current source I1 acting
alone, the current Ia2 due to the voltage source V 2 acting alone, and
the current Ia3 due to the voltage source V 3 acting alone, and then
evaluate the sum Ia = Ia1 + Ia3 + Ia3. Make use of current dividers
and voltage dividers as much as possible.
- Use the superposition method to determine the voltage V b.
- Apply the node-voltage method to find Ia and V b, and then compare
these results to those of the superposition method.
Use these component values: I1 = 1.84 mA, V 2 = 3.0 V, V 3 = 4.9 V
R1 = 1.0 kΩ, R2 = 2.2 kΩ, and R3 = 4.7 kΩ.
NI Multisim Measurements
Enter the circuit of Figure m3.3 into NI Multisim. Use interactive analysis and
the voltmeter and ammeter indicators.
- Place the AMMETER_V and VOLTMETER_H components to display the
current IA and the voltage V B.
- Set the active source to its intended value, and then set all of the other
sources to zero. After stopping the simulator, press Ctrl+Z (“undo”)
two times to return the sources to their original values.
- Repeat to determine the responses due to each source acting alone.
NI Multisim video tutorials:
NI myDAQ Measurements
- Build the circuit of Figure m3.3. Use the myDAQ DMM to measure
IA and V B when all sources are active.
- Measure IA1 to IA3 by activating only one source at a time. Disable
the other sources by disconnecting the current source (replace it by
an open circuit) and disconnecting the voltage source and replacing
it with a jumper wire (short circuit).
- Repeat for V B1 to V B3.
- Add your results together for each source acting alone, and then
compare this result to your original measurement when all sources
were active.
Additional helpful tips:
- Implement the voltage source V 2 according to the circuit diagram of
Figure B.2
in Appendix B.
- Measure V 2 with the myDAQ DMM voltmeter and adjust the
potentiometer to set the voltage as close to 3.00 volts as possible.
Record the actual voltage you measured.
- Implement the voltage source V 3 with the NI myDAQ 5V power
supply. Connect the myDAQ digital ground DGND terminal to the
analog ground AGND at your breadboard.
- Measure V 3 with the myDAQ DMM voltmeter when the circuit is
connected. Expect to find this value slightly less than 5.0 volts. Record
the actual voltage you measured.
- Implement the current source I1 according to the circuit diagram of
Figure B.4
in Appendix B.
Use a 680 Ω resistor for the adjustment resistor R.
- Measure I1 with the myDAQ DMM ammeter and confirm that the
current is close to 1.84 mA. Record the actual current you measured.
NI myDAQ video tutorials:
