Chapter 2
Resistive Circuits
m2.1 Kirchhoff’s Laws

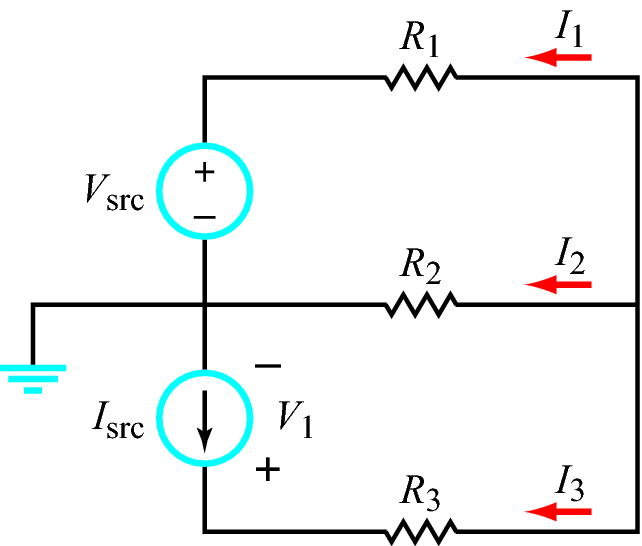

Determine currents I1 to I3 and the voltage V 1 in the circuit of Figure m2.1 with
component values ISRC = 1.8 mA, V SRC = 9.0 V, R1 = 2.2 kΩ, R2 = 3.3 kΩ,
and R3 = 1.0 kΩ.
NI Multisim Measurements
Enter the circuit of Figure m2.1 into NI Multisim and measure the currents I1 to
I3 and the voltage V 1.
- Place components from the “Virtual Components” palette
- Place a Simulate → Instruments → Measurement Probe for each
current
- Place a Simulate → Instruments → Multimeter to measure the voltage
V 1
- Use interactive simulation Simulate → Run
NI Multisim video tutorials:
NI myDAQ Measurements
Build the circuit of Figure m2.1. Use the myDAQ DMM (digital multimeter) to
measure the currents I1 to I3 and the voltage V 1.
- Implement the voltage source V SRC according to the circuit diagram
of Figure B.2
in Appendix B.
- Measure V SRC with the myDAQ DMM voltmeter and adjust the
potentiometer to set the voltage as close to 9.0 volts as possible.
- Implement the current source ISRC according to the circuit diagram
of Figure B.4
in Appendix B.
Use a 680 Ω resistor for the adjustment resistor R.
- Measure ISRC with the myDAQ DMM ammeter and confirm that the
current is close to 1.8 mA. If you desire more precision, use a 1.0 kΩ
potentiometer for R3 and adjust it accordingly.
NI myDAQ video tutorials:
Further Exploration with NI myDAQ
Resistor R3 shares the same current as the current source. Study the effect of this
resistor on the rest of the circuit.
- Replace R3 with a 1.0 kΩ potentiometer.
- Measure current I1 and record the range of currents you observe as
you adjust the potentiometer over its full range.
- Repeat for currents I2 and I3 and voltage V 1.
- Which of the four measured values appears to be independent of the
value of R3?
- Which of the four measured values appears to depend on the value
of R3?
- Propose an explanation for your observations.
